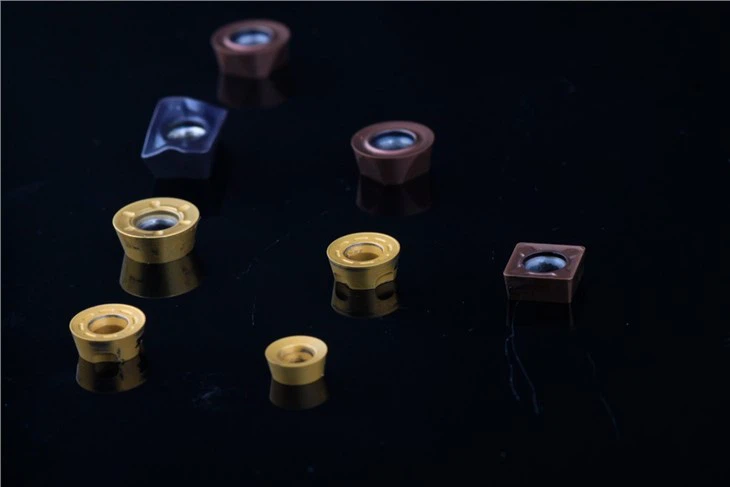

Inserts rau Titanium Alloy Machining
CTRI tau tsim tshwj xeeb qib GY83, GY87, GY03, thiab GY08 rau kev tig thiab milling los ntawm kev ntxiv lub ntiaj teb tsis tshua muaj (RE) thiab siv tshwj xeeb sintering ua.
Hauj lwm lawm
High Temperature Alloy Carbide Inserts Qib thiab Txheej Taw Qhia
CTRI tau tsim tshwj xeeb qib GY83, GY87, GY03, thiab GY08 rau kev tig thiab milling los ntawm kev ntxiv lub ntiaj teb tsis tshua muaj (RE) thiab siv tshwj xeeb sintering ua. Cov khoom lag luam ua kom pom kev ua tau zoo thiab hnav tsis kam tom qab PVD thiab CVD txheej txheej, feem ntau yog siv rau siab - kub alloy, titanium alloy thiab stainless hlau milling, dav siv nyob rau hauv milling thiab tig ntawm chav turbine, hniav ntawm aircraft cav, casing thiab lwm yam nyuaj- rau - cov khoom siv tshuab. Cov txheej muaj siab tiv thaiv crater hnav tsis kam thiab flank hnav kev ua tau zoo nyob rau hauv qhuav milling ntawm stainless hlau.
Composite PVD
|
Pom zoo txiav Parameter |
|||||
|
Txiav Khoom |
Stainless hlau |
Ni-raws li alloy |
titanium alloy |
||
|
Txiav |
Rough Machining |
Finish Machining |
|||
|
Txiav ceev（m/min） |
100-200 |
160-300 |
40-120 |
50-75 |
|
|
Pub (m/min） |
0.6-1.2 |
0.6-1.0 |
0.6-0.8 |
0.6-0.8 |
|
|
Txiav qhov tob（mm） |
0.5-2.5 |
0.5-2.5 |
0.5-1.5 |
0.5-1.5 |
|
|
Qib |
wb 8768 |
wb 8785 |
wb 8368 |
wb 8785 |
wb 8785 |
|
Coolant |
Qhuav |
ntub |
qhuav / ntub |
qhuav / ntub |
qhuav / ntub |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RCKT10T3MO |
10 |
3.97 |
4.4 |
● |
○ |
|
RCKT10T3MOT |
10 |
3.97 |
4.2 |
● |
○ |
|
RCKT10T3MOT-3.5 |
10 |
3.97 |
3.9 |
● |
○ |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RCKT1204MO |
12 |
4.76 |
4.05 |
○ |
● |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
TXC 1606 |
16 |
6.35 |
6.6 |
○ |
● |
|
RCKT1606-X500 |
16 |
6.35 |
5.5 |
○ |
● |
● Recommended Grade ○ Optional Grade
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RCKT2006 |
20 |
4.76 |
4.05 |
○ |
● |
|
|
|||||
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPEX 0803M 3E |
8 |
3.18 |
3.3 |
○ |
● |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPHT10T3MOE |
10 |
3.95 |
4.3 |
○ |
● |
● Recommended Grade ○ Optional Grade
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPKT10T3MO |
10 |
3.97 |
4.5 |
● |
○ |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPMT10T3MO |
10 |
3.97 |
4.4 |
● |
○ |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPHT1204-HQ |
12 |
4.76 |
4.3 |
○ |
● |
|
RPHT1204-AH120 |
12 |
4.76 |
4.3 |
○ |
● |
● Recommended Grade ○ Optional Grade
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RPMX 1204 MO |
12 |
4.76 |
4.4 |
○ |
● |
|
RPMT1204-3536 IB |
12 |
4.76 |
4.4 |
○ |
● |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RMM10T3MO5 |
10 |
3.97 |
3.6 |
○ |
● |
|
|
|||||
|
Order No. |
Dimension(mm) |
Qib |
|||
|
d |
s |
d1 |
GY83 |
GY87 |
|
|
RWM 1204 MO |
12 |
4.76 |
4.4 |
● |
○ |
● Recommended Grade ○ Optional Grade
